DMT616MLSS

Download Datasheet Request Quote

Note : Your request will be directed to Diodes Incorporated.

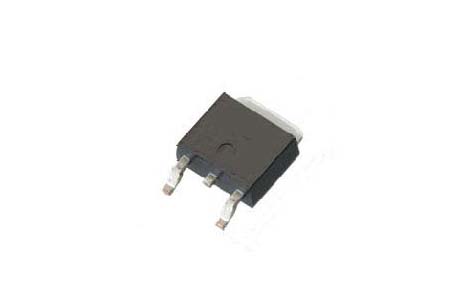

DMT616MLSS Image

The DMT616MLSS from Diodes Incorporated is a MOSFET with Continous Drain Current 10 A, Drain Source Resistance 10.9 to 21 milliohm, Drain Source Breakdown Voltage 60 V, Gate Source Voltage -20 to 20 V, Gate Source Threshold Voltage 1.2 to 2.2 V. Tags: Surface Mount. More details for DMT616MLSS can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DMT616MLSS
  • Manufacturer
    Diodes Incorporated
  • Description
    60 V, N-Channel MOSFET

General

  • Types of MOSFET
    N-Channel Enhancement Mode
  • Transistor Polarity
    N-Channel
  • Number of Channels
    Single
  • Continous Drain Current
    10 A
  • Drain Source Resistance
    10.9 to 21 milliohm
  • Drain Source Breakdown Voltage
    60 V
  • Gate Source Voltage
    -20 to 20 V
  • Gate Source Threshold Voltage
    1.2 to 2.2 V
  • Gate Charge
    7.3 to 13.6 nC
  • Power Dissipation
    2.06 W
  • Temperature operating range
    -55 to 150 ºC
  • RoHS Compliant
    Yes
  • Package Type
    Surface Mount
  • Package
    SO-8
  • Applications
    High Frequency Switching, Synchronized Rectification, DC-DC Converters
