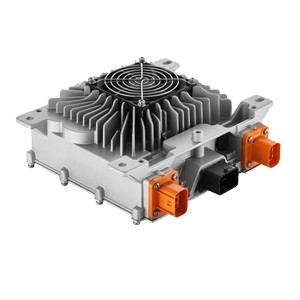

HK-MW-144-23

On-Board Charger by TC CHARGER (22 more products)
Request Quote

Note : Your request will be directed to TC CHARGER.

The HK-MW-144-23 from TC CHARGER is a On-Board Charger with AC Input Voltage 144 V, AC Input Power 3.3 kW, DC Output Voltage 50 to 198 V, DC Output Current 23 A, DC Output Power 3300 W. More details for HK-MW-144-23 can be seen below.

Product Specifications

Product Details

  • Part Number
    HK-MW-144-23
  • Manufacturer
    TC CHARGER
  • Description
    3300 W, 50 to 198 V, On-Board Charger

General

  • Configuration
    Single Phase
  • AC Input Voltage
    144 V
  • AC Input Power
    3.3 kW
  • AC Charging Standard
    93
  • Frequency
    45-65 Hz
  • DC Output Voltage
    50 to 198 V
  • DC Output Current
    23 A
  • DC Output Power
    3300 W
  • Efficiency
    0.93
  • DC Charging Standard
    93
  • Power Factor
    0.99
  • Interface
    CAN-bus
  • IP Rating
    IP67
  • Operating Temperature
    -40 to 85 Degree C
  • Dimension
    198 x 244 x 95 mm ( L x W x H )
  • Application
    Electric and Hybrid Vehicle
  • Note
    Cooling :- Liquid Cooling, Enforce Air Cooled
