CSBX1809-220M

Power Inductor by CODACA Electronic (928 more products)
Download Datasheet Request Quote

Note : Your request will be directed to CODACA Electronic.

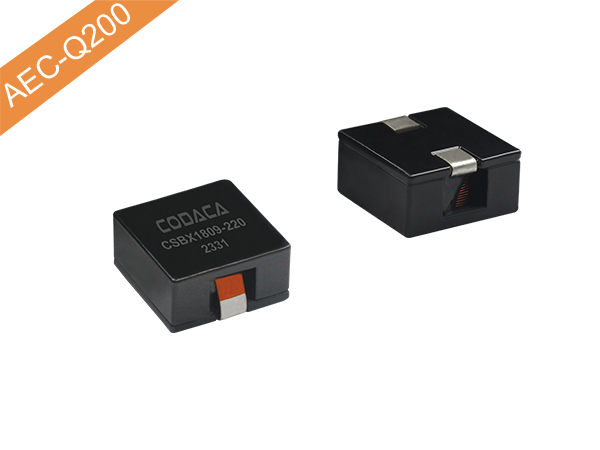

CSBX1809-220M Image

The CSBX1809-220M from CODACA Electronic is a Power Inductor with Inductance 22 µH, Inductance Tolerance ±20 %, DCR 12.1 to 14.1 milli-ohm, Saturation Current 17.5 A, Temperature Operating Range -55 to 150 Degree C. Tags: Surface Mount. More details for CSBX1809-220M can be seen below.

Product Specifications

Product Details

  • Part Number
    CSBX1809-220M
  • Manufacturer
    CODACA Electronic
  • Description
    22 μH, ±20 %, 17.5 A, Shielded Power Inductor

General

  • Types of Inductor
    Shielded Inductor
  • Industry
    Industrial, Commercial
  • Inductance
    22 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    12.1 to 14.1 milli-ohm
  • Saturation Current
    17.5 A
  • Qualification
    AEC-Q200
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -55 to 150 Degree C
  • Dimension
    19.30 x 18.20 x 8.90 mm (L x W x H)
  • Applications
    Rraphic cards/ industrial conputers, DC /DC converters/Motherboards/Filter, High current switching regulators/Polyphase-switching regulators
  • Package Type
    Surface Mount
  • Package
    SMD
