CSCF2016-4R7MC

Power Inductor by CODACA Electronic (928 more products)
Download Datasheet Request Quote

Note : Your request will be directed to CODACA Electronic.

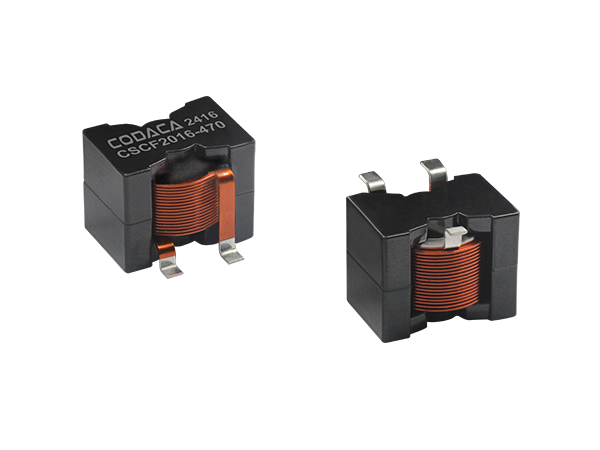

CSCF2016-4R7MC Image

The CSCF2016-4R7MC from CODACA Electronic is a Power Inductor with Inductance 4.70 µH, Inductance Tolerance ±20 %, DCR 3.30 to 4.00 milli-ohm, Saturation Current 42 A, Temperature Operating Range -40 to 125 Degree C. Tags: Surface Mount. More details for CSCF2016-4R7MC can be seen below.

Product Specifications

Product Details

  • Part Number
    CSCF2016-4R7MC
  • Manufacturer
    CODACA Electronic
  • Description
    4.70 µH, ±20 %, 42 A, Shielded Power Inductor

General

  • Types of Inductor
    Shielded Inductor
  • Industry
    Industrial, Commercial
  • Inductance
    4.70 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    3.30 to 4.00 milli-ohm
  • Saturation Current
    42 A
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Dimension
    22.50 x 21.80 x 16.50 mm (L x W x H)
  • Applications
    Ideally used in tablet PC, LCD display, server application, High current power supplies, Battery power devices, DC/DC converters in distributed power systems.
  • Package Type
    Surface Mount
  • Package
    SMD
