RKR0630-8R2M

Power Inductor by CODACA Electronic (928 more products)
Download Datasheet Request Quote

Note : Your request will be directed to CODACA Electronic.

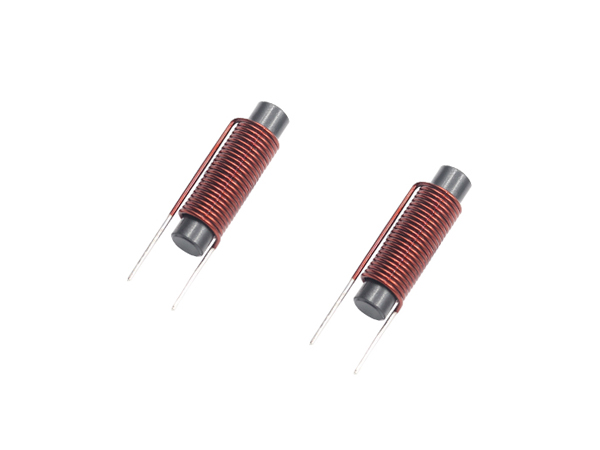

RKR0630-8R2M Image

The RKR0630-8R2M from CODACA Electronic is a Power Inductor with Inductance 8.20 µH, Inductance Tolerance ±20 %, DCR 5.79 to 7.53 milli-ohm, Saturation Current 11 A, Temperature Operating Range -40 to 125 Degree C. Tags: Through Hole. More details for RKR0630-8R2M can be seen below.

Product Specifications

Product Details

  • Part Number
    RKR0630-8R2M
  • Manufacturer
    CODACA Electronic
  • Description
    8.20 µH, ±20 %, 11 A, Rod Power Inductor

General

  • Types of Inductor
    Unshielded Inductor
  • Industry
    Industrial, Commercial
  • Inductance
    8.20 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    5.79 to 7.53 milli-ohm
  • Saturation Current
    11 A
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Dimension
    9.20 x 9.20 x 30 mm (L x W x H)
  • Applications
    Standard filter applications, EMC Suppression in motor drive systems, In over all application in infotainment systems
  • Package Type
    Through Hole
  • Package
    DIP
  • Note
    Irms :-16.6 A, Unshielded Inductor
