SP73-560K

Power Inductor by CODACA Electronic (928 more products)
Download Datasheet Request Quote

Note : Your request will be directed to CODACA Electronic.

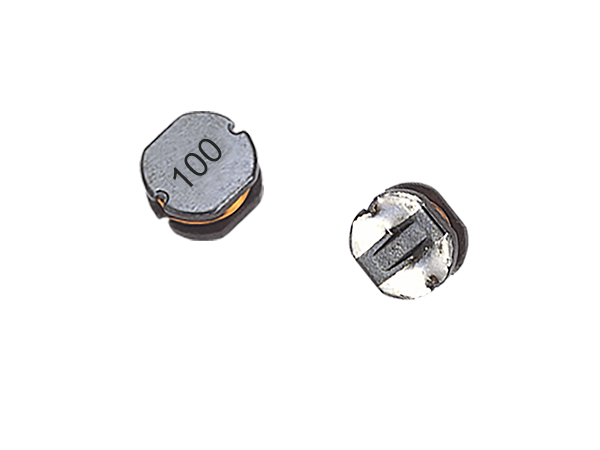

SP73-560K Image

The SP73-560K from CODACA Electronic is a Power Inductor with Inductance 56 µH, Inductance Tolerance ±10 %, DCR 210 to 252 milli-ohm, Saturation Current 1.32 A, Temperature Operating Range -40 to 125 Degree C. Tags: Surface Mount. More details for SP73-560K can be seen below.

Product Specifications

Product Details

  • Part Number
    SP73-560K
  • Manufacturer
    CODACA Electronic
  • Description
    56 µH, ±10 %, 1.32 A, Drum Core Inductor

General

  • Types of Inductor
    Drum Core Inductor
  • Industry
    Industrial, Commercial
  • Inductance
    56 µH
  • Inductance Tolerance
    ±10 %
  • DCR
    210 to 252 milli-ohm
  • Saturation Current
    1.32 A
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Dimension
    7.80 x 7.00 x 3.50 mm (L x W x H)
  • Applications
    Ideally used in Notebook PC, LCD T, Game machine STB, buck converter, network communication equipment
  • Package Type
    Surface Mount
  • Package
    SMD
  • Note
    Irms :-1.41 A
