DIO20724TP14

Power Operational Amplifier by Dioo Microcircuits (125 more products)
Download Datasheet Request Quote

Note : Your request will be directed to Dioo Microcircuits.

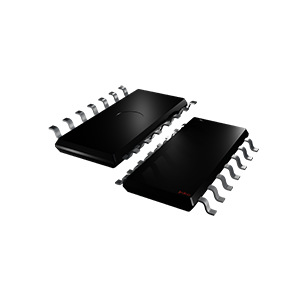

DIO20724TP14 Image

The DIO20724TP14 from Dioo Microcircuits is a Power Operational Amplifier with Supply Voltage 2.5 to 5.5 V, Input Offset Voltage ±5 mV, Input Bias Current 1 pA, Quiescent Current 620 uA, Input Offset Current 1 pA. Tags: Surface Mount, General Purpose Op Amp. More details for DIO20724TP14 can be seen below.

Product Specifications

Product Details

  • Part Number
    DIO20724TP14
  • Manufacturer
    Dioo Microcircuits
  • Description
    2.5 to 5.5 V, 620 uA, Power operational Amplifier

General

  • Type
    General Purpose Op Amp
  • Number of Channel
    Quad
  • Supply Voltage
    2.5 to 5.5 V
  • Input Offset Voltage
    ±5 mV
  • Input Bias Current
    1 pA
  • Quiescent Current
    620 uA
  • Input Offset Current
    1 pA
  • Input Offset Voltage Drift
    2 µV/°C
  • Input Voltage Noise
    20 to 28 nV/vHz
  • Output Current
    20 to 85 mA
  • Output Voltage Swing
    0.015 to 0.1 V
  • Open Loop Gain
    100 to 130 dB
  • Gain Bandwidth
    10 MHz
  • CMRR
    75 to 90 dB
  • PSRR
    75 to 110 dB
  • Slew Rate
    6.5 V/us
  • Operating Temperature
    -40 to 125 Degree C
  • Storage Temperature
    -65 to 150 Degree C
  • RoHS Compliance
    Yes
  • Industry
    Industrial, Commercial
  • Application
    Portable Equipment, Active Filters, Data Acquisition, Test Equipment, Broadband Communication, Process Control, Audio and Video Processing
  • Package
    TSSOP-14
  • Package Type
    Surface Mount
