CS7N-645MB-AG

Solar Panels by Canadian Solar (28 more products)

Note : Your request will be directed to Canadian Solar.

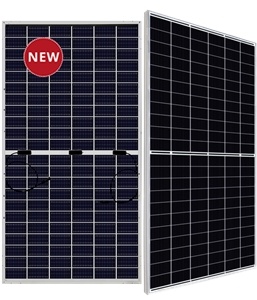

CS7N-645MB-AG Image

The CS7N-645MB-AG from Canadian Solar is a Mono-Crystalline Solar Panel that is ideal for utility power plant applications. This solar panel requires an input voltage of 37.7 V. It provides an output power of 645 W and has an efficiency of 20.8%. This solar panel achieves high power and reliability with advanced LID/LeTID mitigation technology, reducing degradation by up to 50%. It is designed to withstand heavy snow loads of up to 5400 Pa and wind loads of less than 2400 Pa. This solar panel minimizes impact due to micro-cracks and has a lower hot spot temperature to greatly reduce module failure rate. It is compatible with mainstream trackers, making it a cost-effective solution for utility power plants. This solar panel is available in a panel-mount package that measures 1303 x 2384 x 33 mm.

Product Specifications

Product Details

  • Part Number
    CS7N-645MB-AG
  • Manufacturer
    Canadian Solar
  • Description
    645 W Mono-Crystalline Solar Panel

General

  • Output Power
    645 W
  • Output Voltage
    37.7 V
  • Output Current
    17.11 A
  • Temperature Operating Range
    -40 to 85 Degree C
  • Industry
    Industrial, Commercial
  • Applications
    Utility Power Plant Applications
  • Dimension
    1303 x 2384 x 33 mm
  • Package Type
    Panel
  • Note
    Bifacial Power (Pmax) :- 677 to 774 W, Bifacial Module Efficiency :- 21.8 to 24.9 %, Weight :- 37.8 Kg, Bifacial Monocrystalline Panel
