TK25A20D

Download Datasheet Request Quote

Note : Your request will be directed to Toshiba.

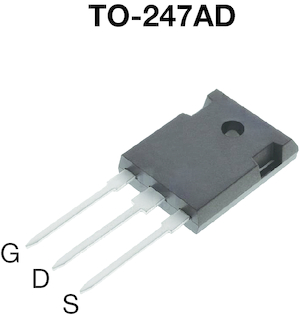

TK25A20D Image

The TK25A20D from Toshiba is a MOSFET with Continous Drain Current 25 A, Drain Source Resistance 47 to 70 Milliohm, Drain Source Breakdown Voltage 200 V, Gate Source Voltage -20 to 20 V, Gate Source Threshold Voltage 1.5 to 2.5 V. Tags: Through Hole. More details for TK25A20D can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TK25A20D
  • Manufacturer
    Toshiba
  • Description
    200 V, 60 nC, N-Channel Enhancement Mode MOSFET

General

  • Types of MOSFET
    N-Channel Enhancement Mode
  • Transistor Polarity
    N-Channel
  • Number of Channels
    Single
  • Continous Drain Current
    25 A
  • Drain Source Resistance
    47 to 70 Milliohm
  • Drain Source Breakdown Voltage
    200 V
  • Gate Source Voltage
    -20 to 20 V
  • Gate Source Threshold Voltage
    1.5 to 2.5 V
  • Gate Charge
    60 nC
  • Power Dissipation
    45 W
  • RoHS Compliant
    Yes
  • Package Type
    Through Hole
  • Package
    TO-220
  • Applications
    Switching Voltage Regulators
