MIF300R12C2TL

Download Datasheet Request Quote

Note : Your request will be directed to Micro Commercial Components.

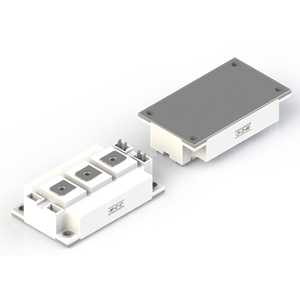

MIF300R12C2TL Image

The MIF300R12C2TL from Micro Commercial Components is a IGBT with Gate Emitter Voltage -20 to 20 V, Saturated Collector Emitter Voltage 1.85 to 2.3 V, DC Collector Current 300 A, Peak Collector Current 600 A, Junction Temperature -40 to 150 Degree C. More details for MIF300R12C2TL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MIF300R12C2TL
  • Manufacturer
    Micro Commercial Components
  • Description
    1200 V, Dual Switch IGBT Module

General

  • Types
    Dual Switch IGBT
  • No. of Transistors
    Dual
  • Gate Emitter Voltage
    -20 to 20 V
  • Saturated Collector Emitter Voltage
    1.85 to 2.3 V
  • DC Collector Current
    300 A
  • Peak Collector Current
    600 A
  • Junction Temperature
    -40 to 150 Degree C
  • Gate Emitter Leakage Current
    0.4 uA
  • Collector Emitter Voltage
    1200 V
  • Power Dissipation
    1700 W
  • Package
    C2
  • Package Type
    Module
  • Industry
    Commercial, Industrial
  • Applications
    Inverter for Motor Drive, AC and DC Servo Driver Amplifier, UPS(Uninterruptible Power Supplies), Soft Switching Welding Machine
  • RoHS Compliant
    Yes
